Setup fields

Most useful integrations need something from the user: an API key, an account id, a default voice, a toggle. Declare those needs in the manifest and VoiceOS does the rest — it asks in the notch, right when the value is first needed, stores it encrypted, and injects it into your server as an environment variable. You never build a settings screen, and secrets never pass through the agent transcript.

Declaring fields

Two manifest sections feed one setup form:

"auth": {
  "kind": "apiKey",
  "fields": [
    { "key": "ELEVENLABS_API_KEY", "label": "ElevenLabs API key", "secret": true }
  ]
},
"preferences": [
  {
    "name": "ELEVENLABS_VOICE_ID",
    "title": "Default voice",
    "description": "Voices → any voice → ID, in your ElevenLabs dashboard.",
    "type": "text",
    "default": "21m00Tcm4TlvDq8ikWAM"
  },
  {
    "name": "SPICY_MODE",
    "title": "Allow spicy summaries",
    "type": "boolean",
    "default": "false"
  }
]

Field types: text, password, number, boolean, select (which must declare options: [{ label, value }]).

Requiredness is asymmetric, on purpose

	Default
`auth.apiKey` fields	Required unless you set `required: false`.
`preferences`	Optional unless you set `required: true`.
Any field with a `default`	Never considered missing.
Booleans	`"false"` is a real answer — only unanswered blocks a required field.

Auth fields and preferences share one namespace; declaring the same name in both is a validation error.

Reaching your code

Values are injected as environment variables named exactly after each field:

const key = process.env.ELEVENLABS_API_KEY;
if (!key) throw new Error("ELEVENLABS_API_KEY is not configured.");

Three rules keep this honest:

Name fields in SCREAMING_SNAKE_CASE so the manifest reads like the env it produces.
Declare every env var you read. An undeclared process.env.X is silently empty at runtime — the Studio’s validator rejects builds that read undeclared vars, and your own code should too.
Never hardcode keys. Secrets come from the user.

And the inverse: don’t declare fields your code never reads, don’t mark a field required when a sensible default exists, and if the API works without a key, declare no credential at all.

What the user sees

The first time the agent picks one of your tools while a required field is missing, the turn pauses and the notch shows a setup card containing only the missing fields — password renders as a secure field, boolean as a toggle, select as a picker.

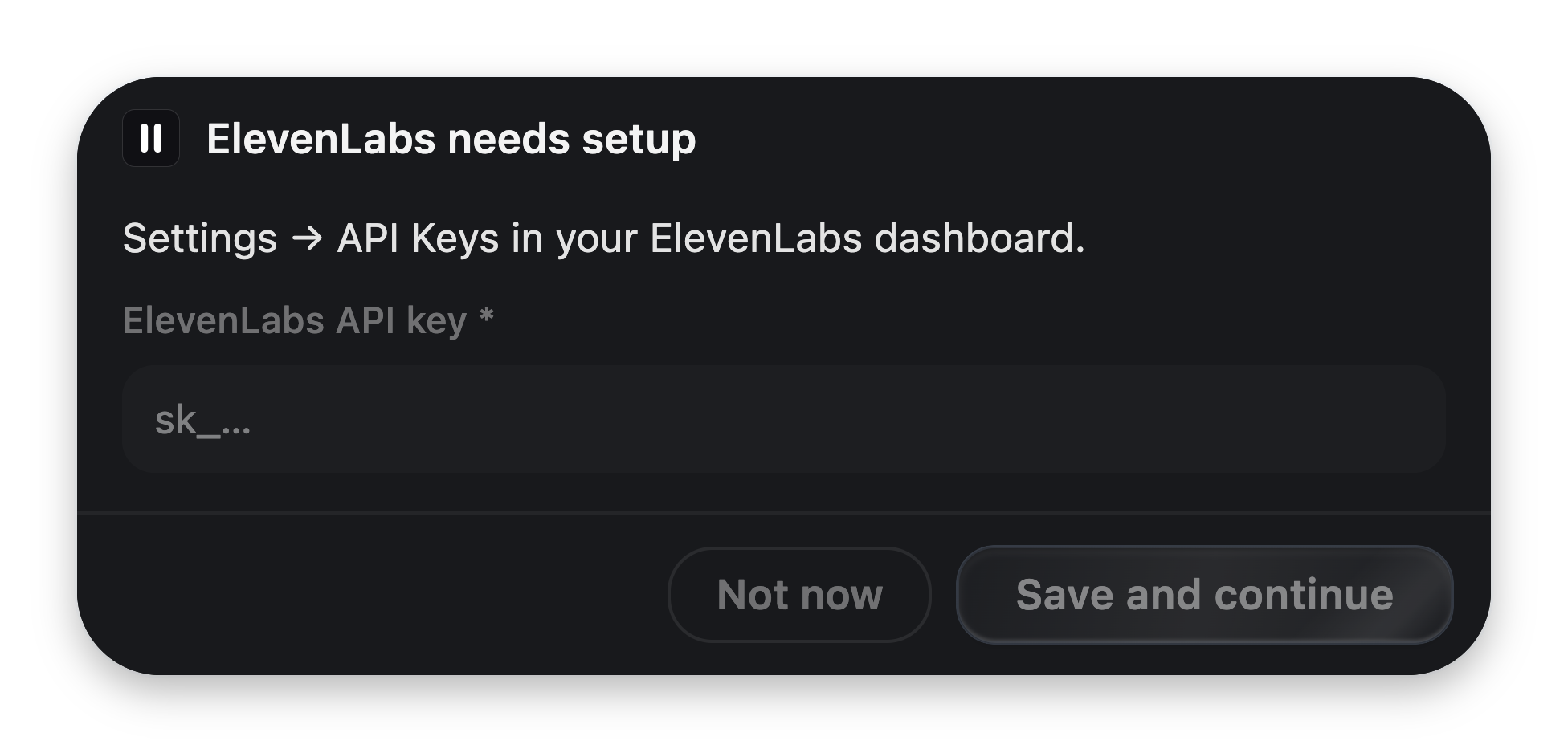

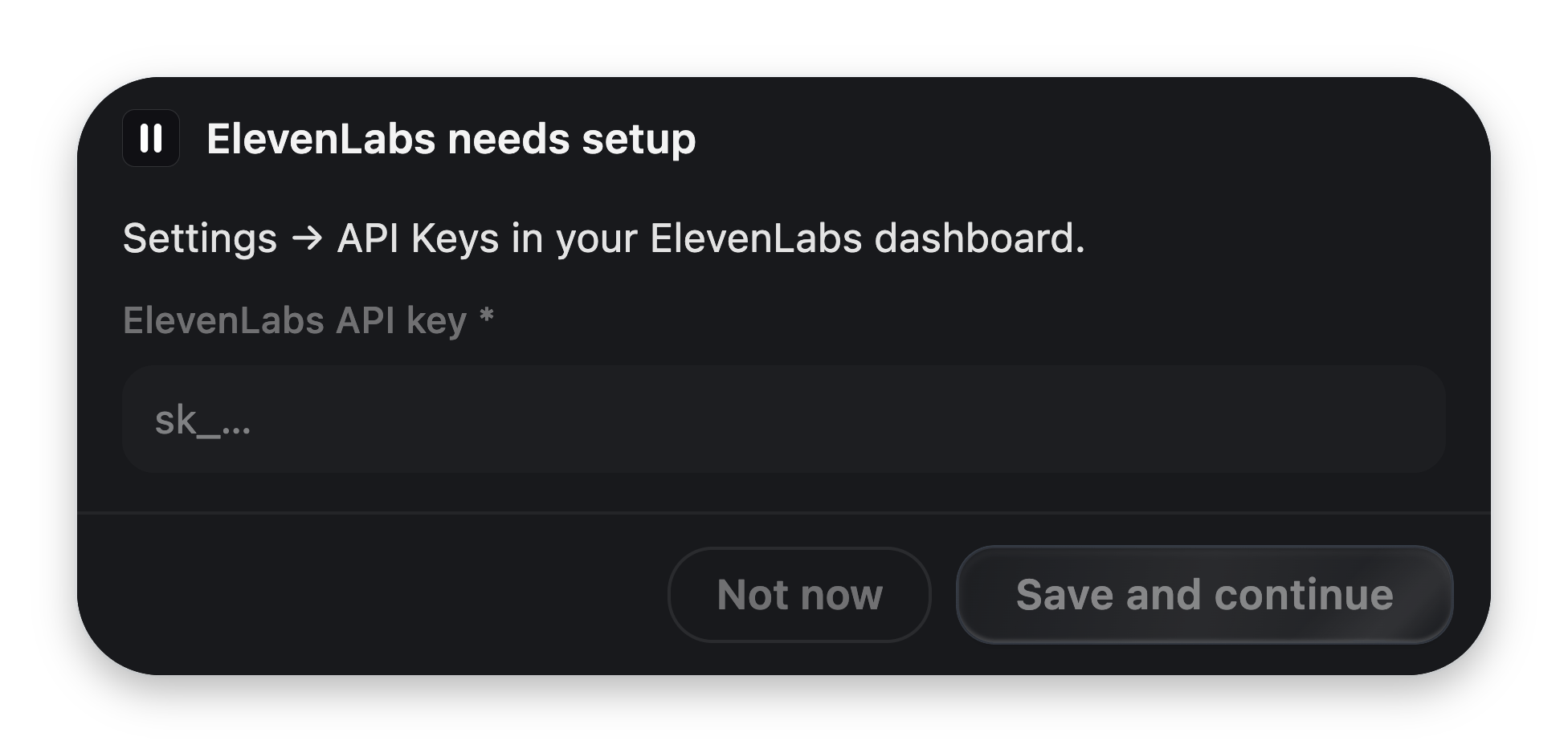

An 'ElevenLabs needs setup' card in the notch with the help text 'Settings → API Keys in your ElevenLabs dashboard.', a secure API key field with an sk_ placeholder, and Not now / Save and continue buttons. — Built entirely from your declarations. You write zero UI.

On save, VoiceOS persists the values (secrets encrypted), relaunches your server with the new environment, and runs the tool — same turn.
The card is patient. If the user takes too long the turn ends honestly (the model is told setup is required and not to retry), but the card stays up. Finishing the form still saves the values, and the next request just works.
Values persist per user. Setup happens once, not per call.

Write each field’s description for that card: say where to get the value (“Settings → API Keys in your ElevenLabs dashboard”), not what the field is called.

Editing values later

Configure on the integration’s detail page reopens the form. Secret fields prefill empty — leaving one blank keeps the stored value; VoiceOS never echoes secrets back to the UI.
In the Integration Studio, a Required fields section sits above the tools list. Filling it relaunches the draft server, so a key-gated integration is test-drivable immediately — and once everything required is filled, the Studio quietly runs each read-only tool once and shows real results in the preview.

SDK helpers

If you’re building with the SDK package, @voiceos/integration-sdk exports the same logic VoiceOS runs — useful in tests:

import {
  setupFields,            // normalized list: auth fields + preferences
  missingRequiredSetupFields,
  isSetupComplete,
  setupDefaults,          // { name: default } for everything with a default
  setupToView,            // compile a setup form as a UiView
} from "@voiceos/integration-sdk";

Next: Custom widgets

The built-in blocks cover most cards. When they don’t, take over the pixels.
